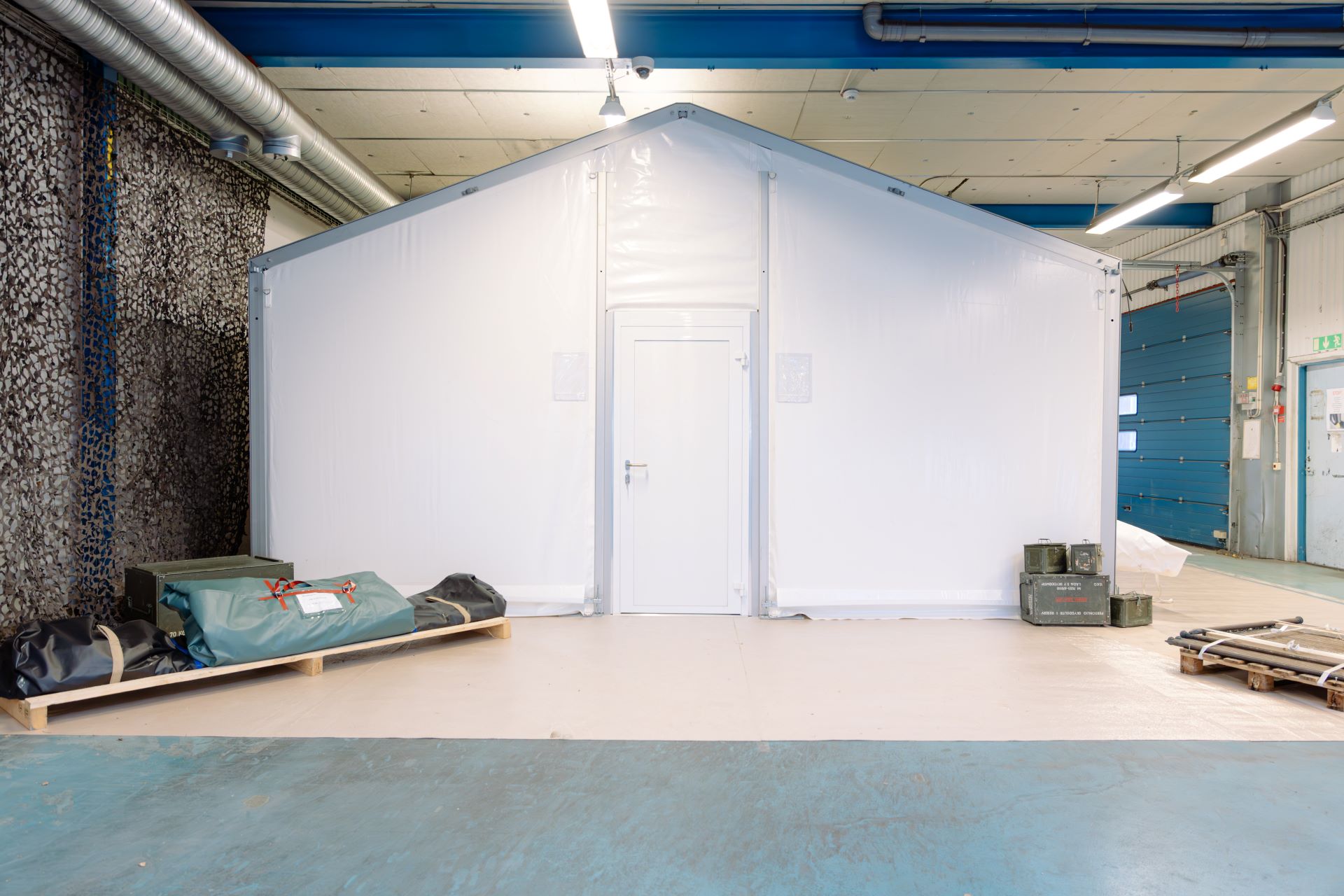

MTE Troop Tent
Versatile Accommodation Tent For Fast Transport And Deployment In Civil And Military Applications

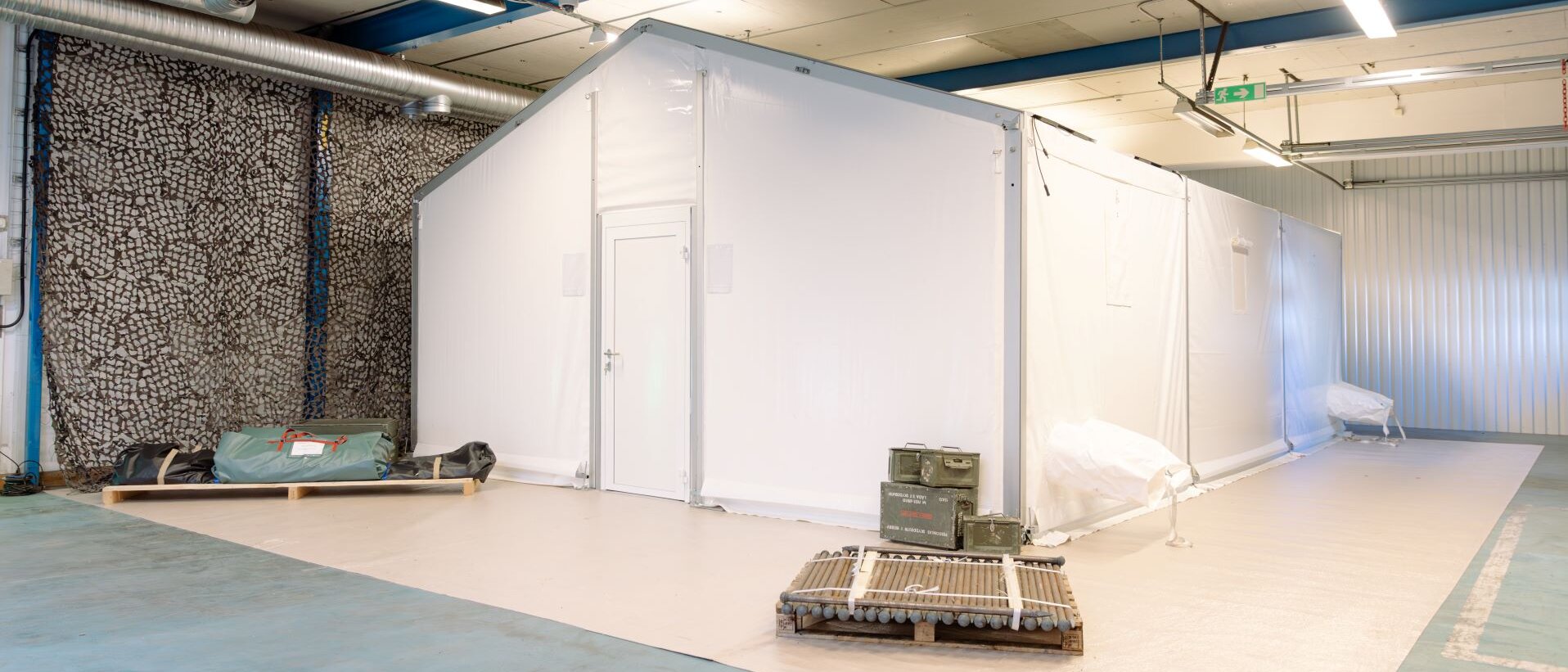

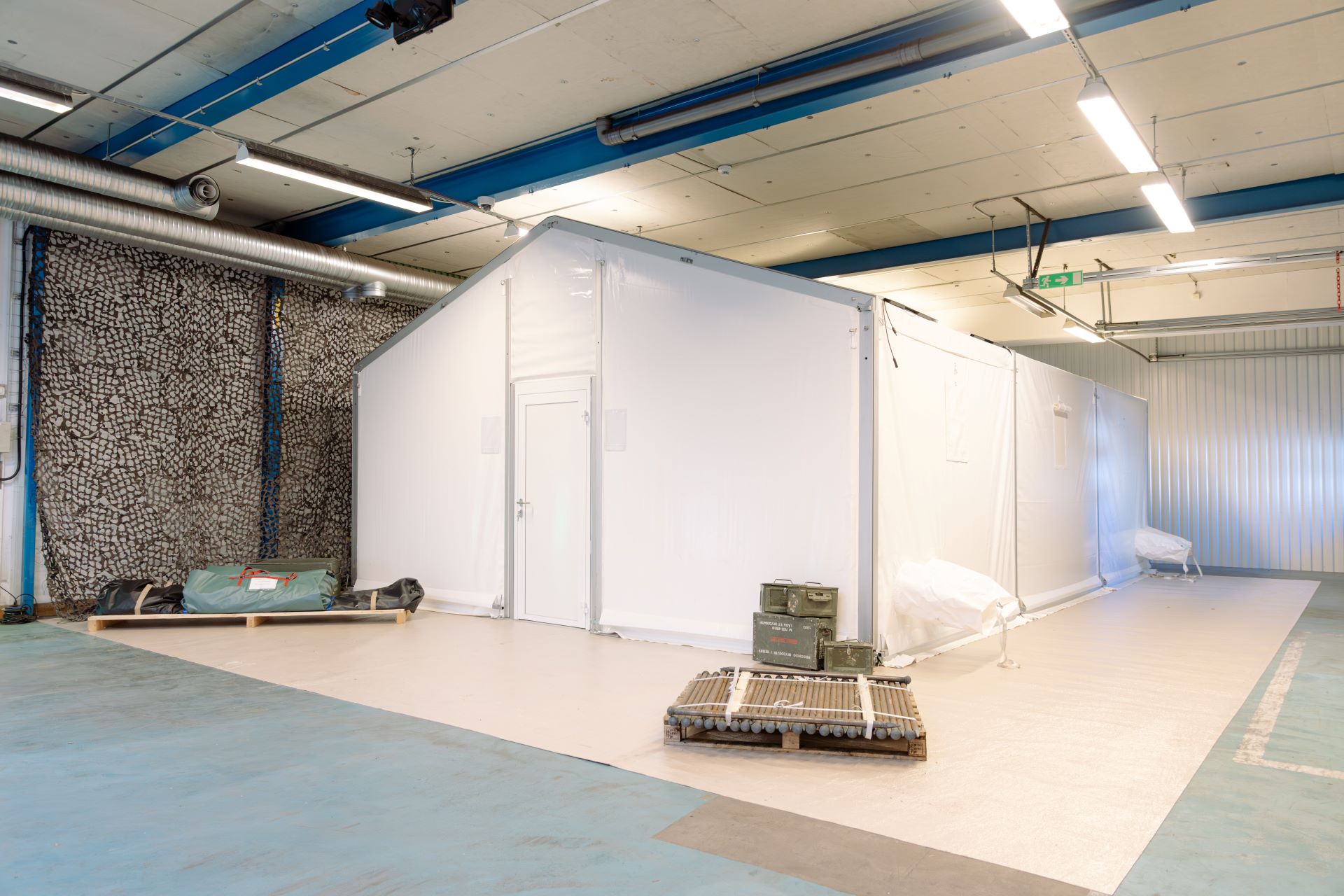

The MTE Troop Tent is a highly adaptable, modular tent designed for temporary accommodation, command posts, or medical facilities in the field. With a 6m wide base and lengths of 3m, 6m or 9m, the tent can be adapted to the specific needs of each application.
The tent’s 2.5m side height and 3m truss spacing gives efficient interior space even during intensive use. The robust frame is made of anodized aluminum that’s connected together with high-strength steel joints. This strong framework can easily withstand wind speeds of up to 125km/h and snow loads of up to 60kg/m².
The tent skin is made from opaque PVC which is available in white, olive green, or sand colors. This material meets the fire protection requirements of DIN 4102/B1 and M2. On request, the zipped gable ends can be supplied with an integrated door for convenient access and additional ventilation.
The MTE Troop Tent can also be supplied with optional equipment including solar panels or IR reflecting PVC to significantly reduce detection by thermal imaging.
Special Features

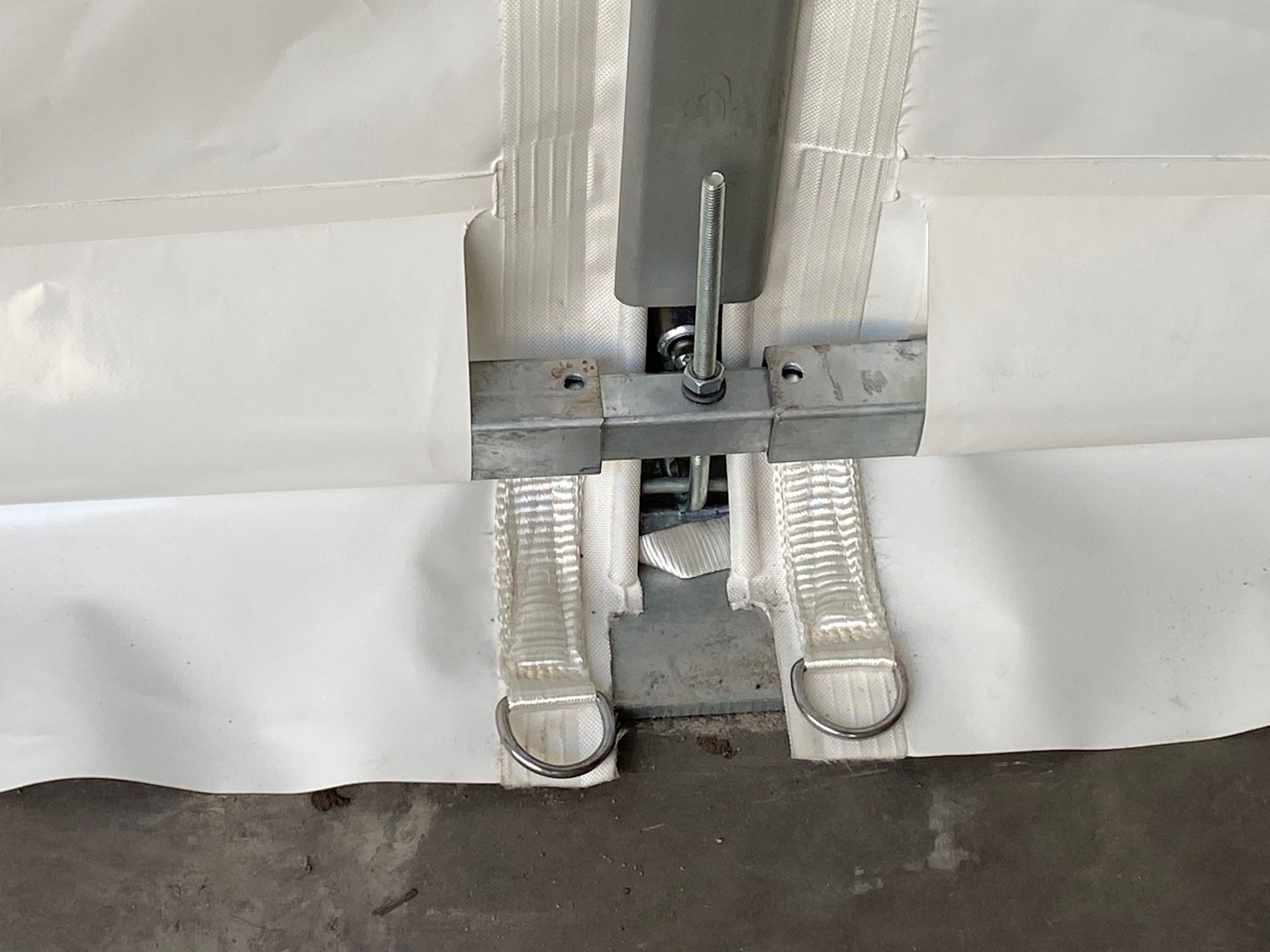

- Intuitive plug-in system allows quick assembly even by untrained personnel
- Expandable length in 3m sections
- Strong, weatherproof and highly stabile in adverse environmental conditions
- Wide range of accessories including interior cladding and solar panels
- Camouflage and IR protection options to avoid detection
- Packed tent is compact for quick relocation
- Light and dust protection for sensitive applications
Applications
- Accommodation for emergency services and military units
- Social and recreation rooms
- Mobile operations center/command post
- Emergency shelters in crisis regions
- Material and equipment storage
- Treatment tent/mobile medical unit
- Field hospital or triage tent in medical emergencies
Options And Accessories
Flooring solutions
- Heavy-duty flooring
- Cassette flooring
- Steel and aluminum substructure
Tent skin
- Standard colors: white, olive green and sand
- IR reflective option
- Inner sheet with floor connection and zip door

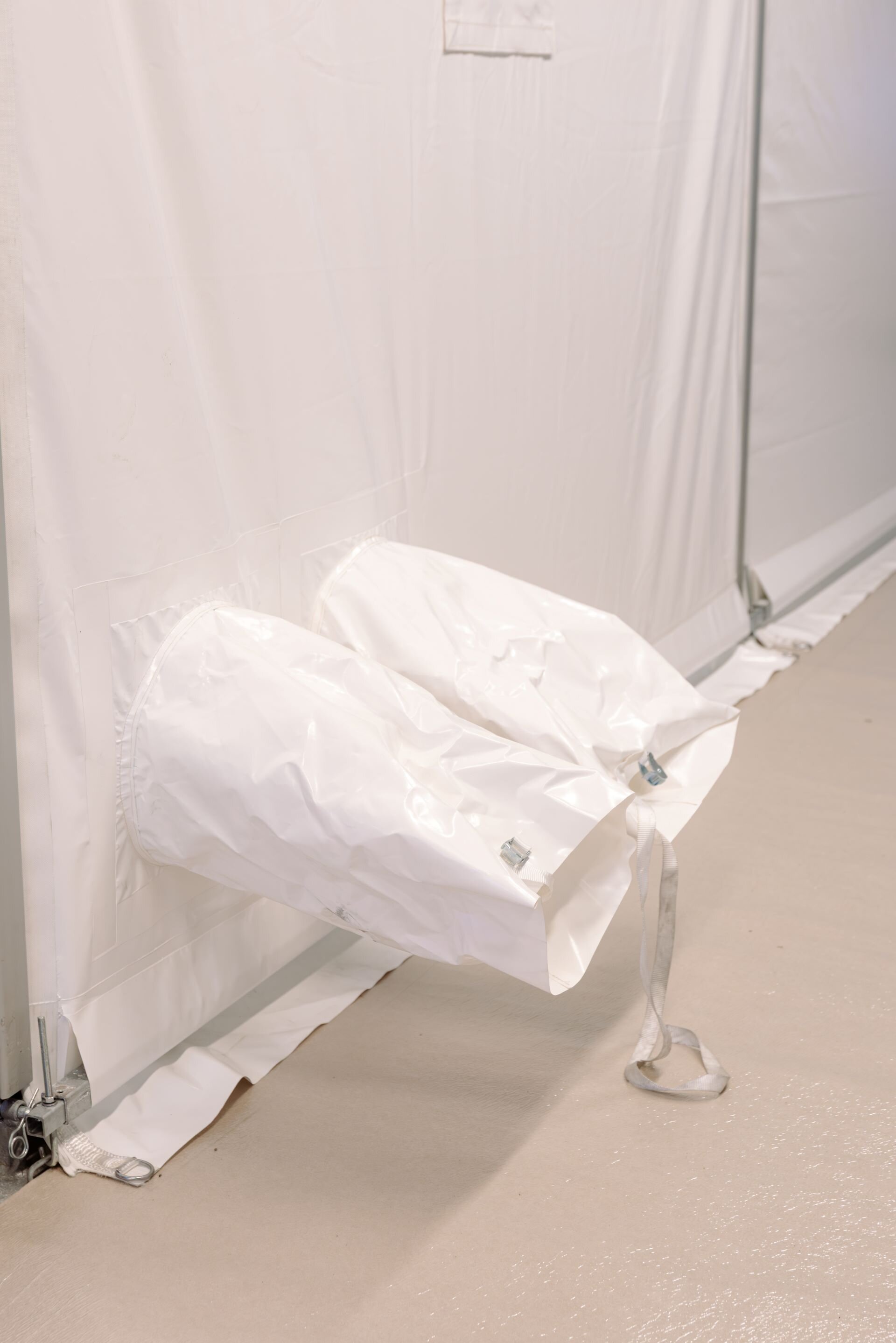

- Additional feed-through for air conditioning/heating hoses
Other options
- Windows with mesh fabric
- Lighting and heating systems
- Solar panels for off-grid, renewable energy supply
- Transport packaging for storage and logistics

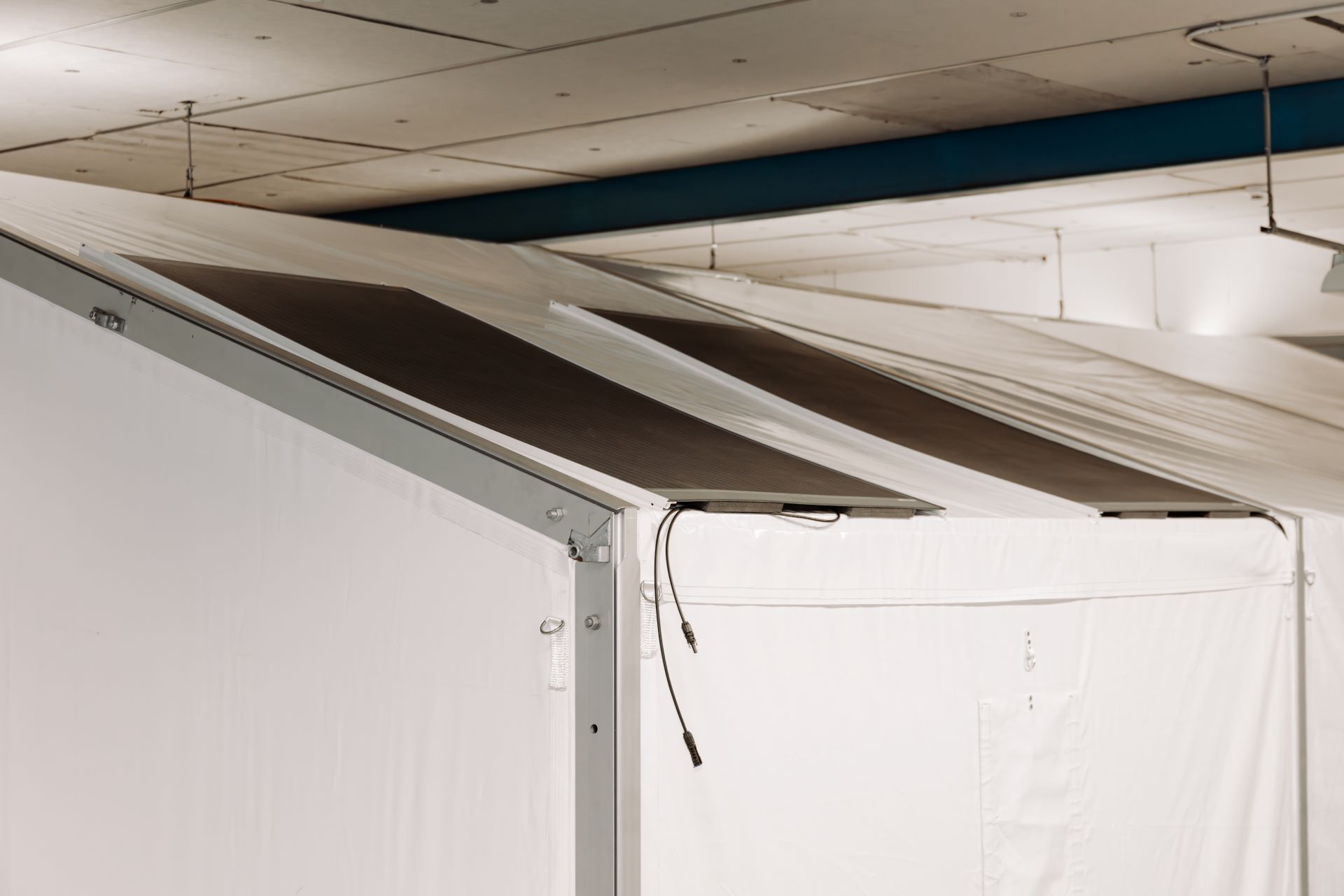

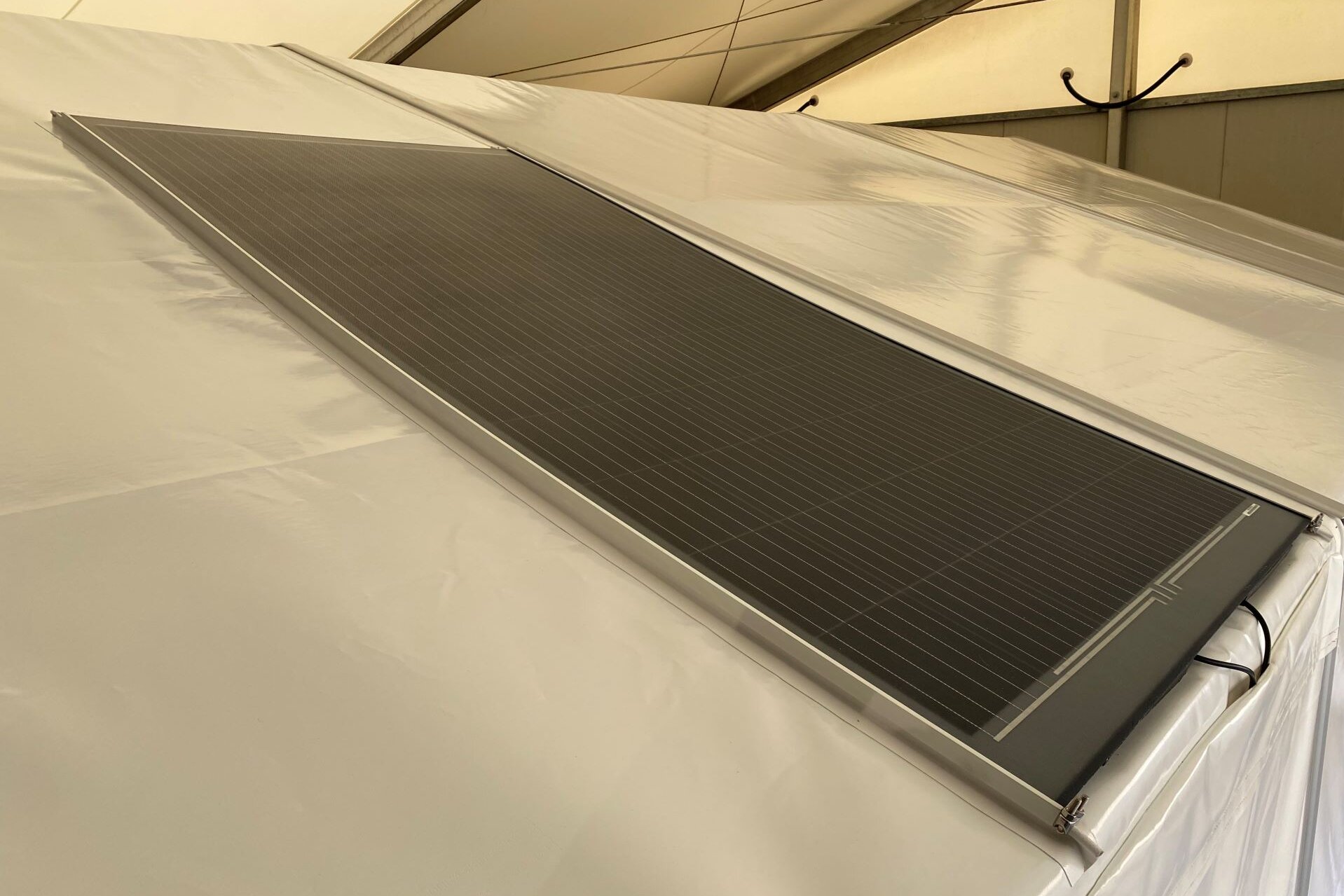

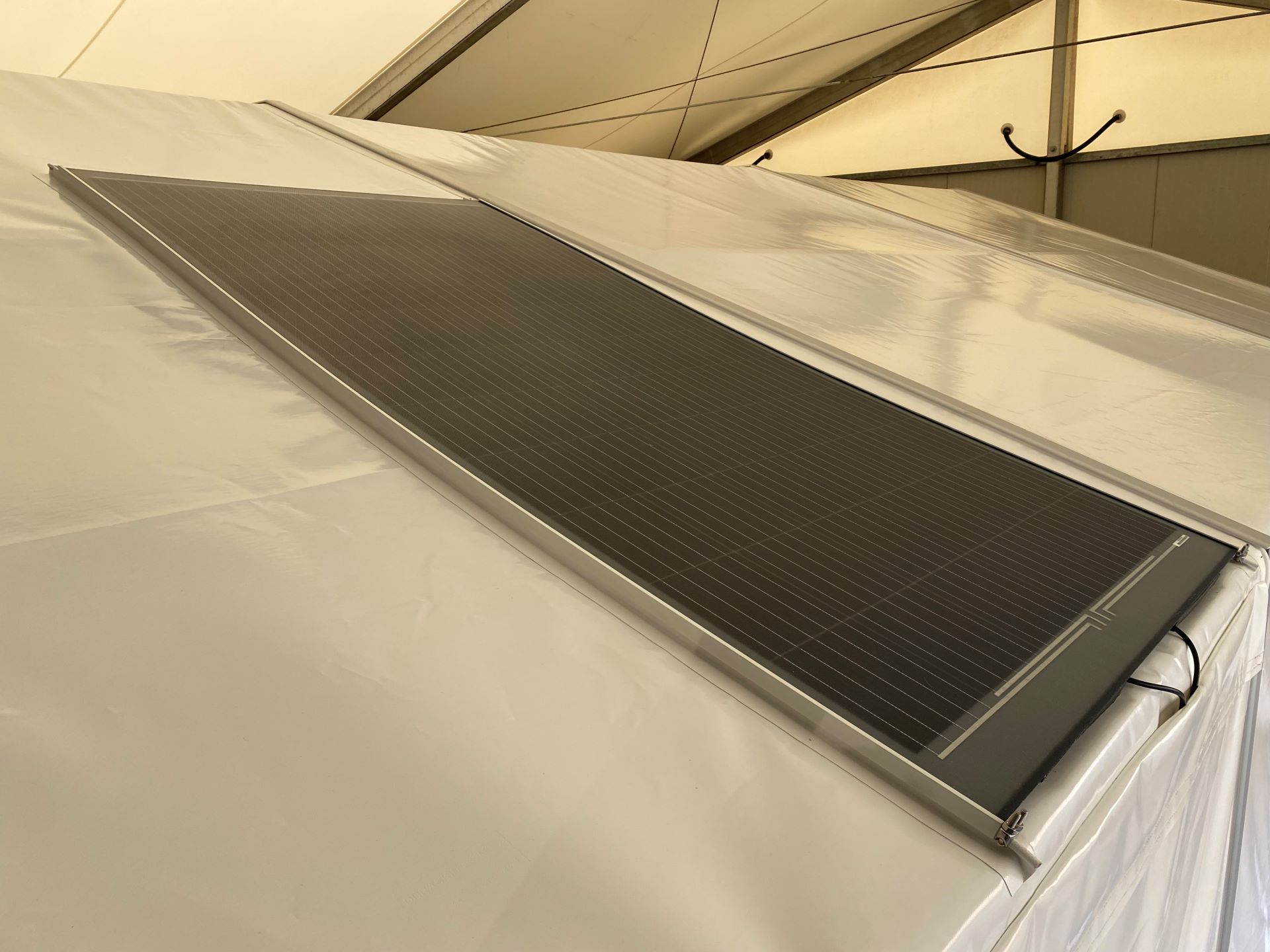

Solar Panel Option
Lightweight, flexible modules on textile roofs with monocrystalline silicon ensure a reliable energy supply even in remote locations.
- Weight: approx. ideal for lightweight support structures at only 3–4kg/m².
- Installation: Fast, simple installation from the eaves.
Technical Information
| Feature | Description |
| Tent width | 6 m |
| Tent length | 3 m / 6 m / 9 m (expandable) |
| Side height | 2.50 m |
| Truss spacing | 3 m |
| Frame | Anodized aluminum/steel parts |
| Wind load | Up to 125 km/h |
| Snow load | 60 kg/m² |
| Tarpaulin | PVC, opaque, B1/M2 |
| Gable access | Zipped door option |
| Transport | Compact and mobile |
