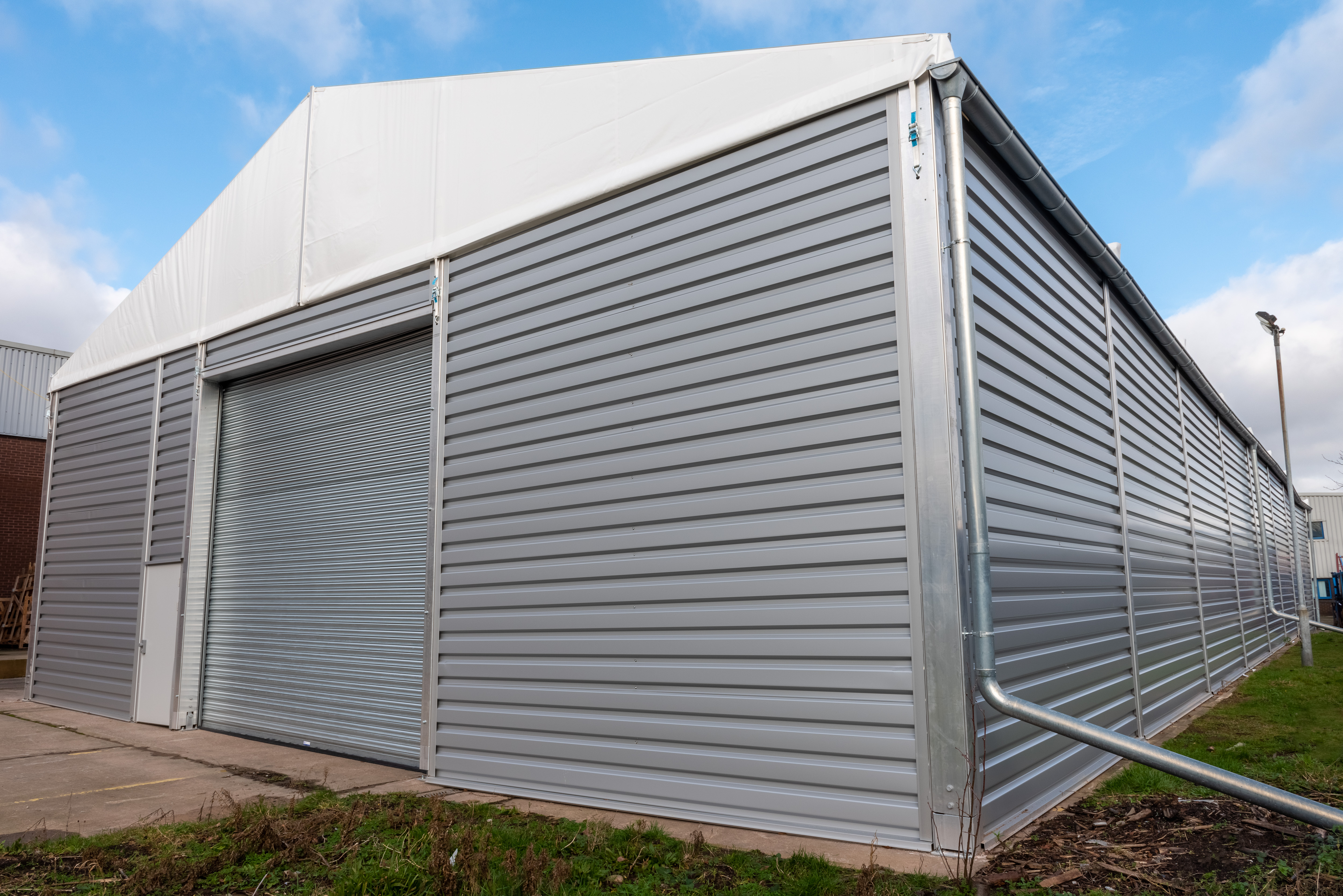

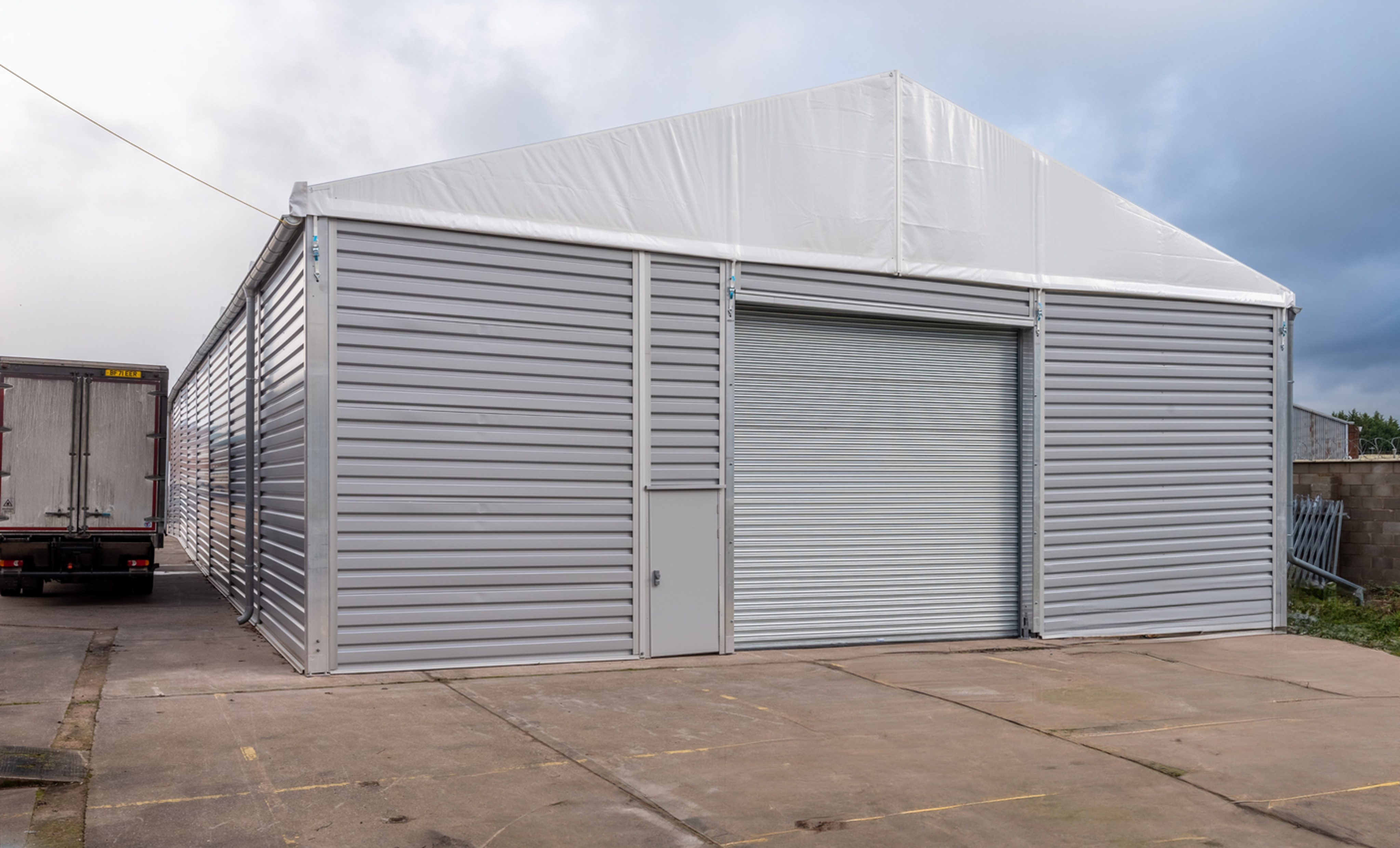

Installed onto an existing uneven concrete yard, this 15m wide, 45m long warehouse holds replacement vehicle windscreens. It was erected for a UK specialist dedicated to fixing, repairing and replacing broken vehicle glass on any make, model or age of vehicle.
With 5.3m high corrugated sheet steel walls and a double skin PVC insulated roof system, the building is finished in a light grey (RAL 9006). Single-layer triangular gable ends made of translucent PVC match the roof design.

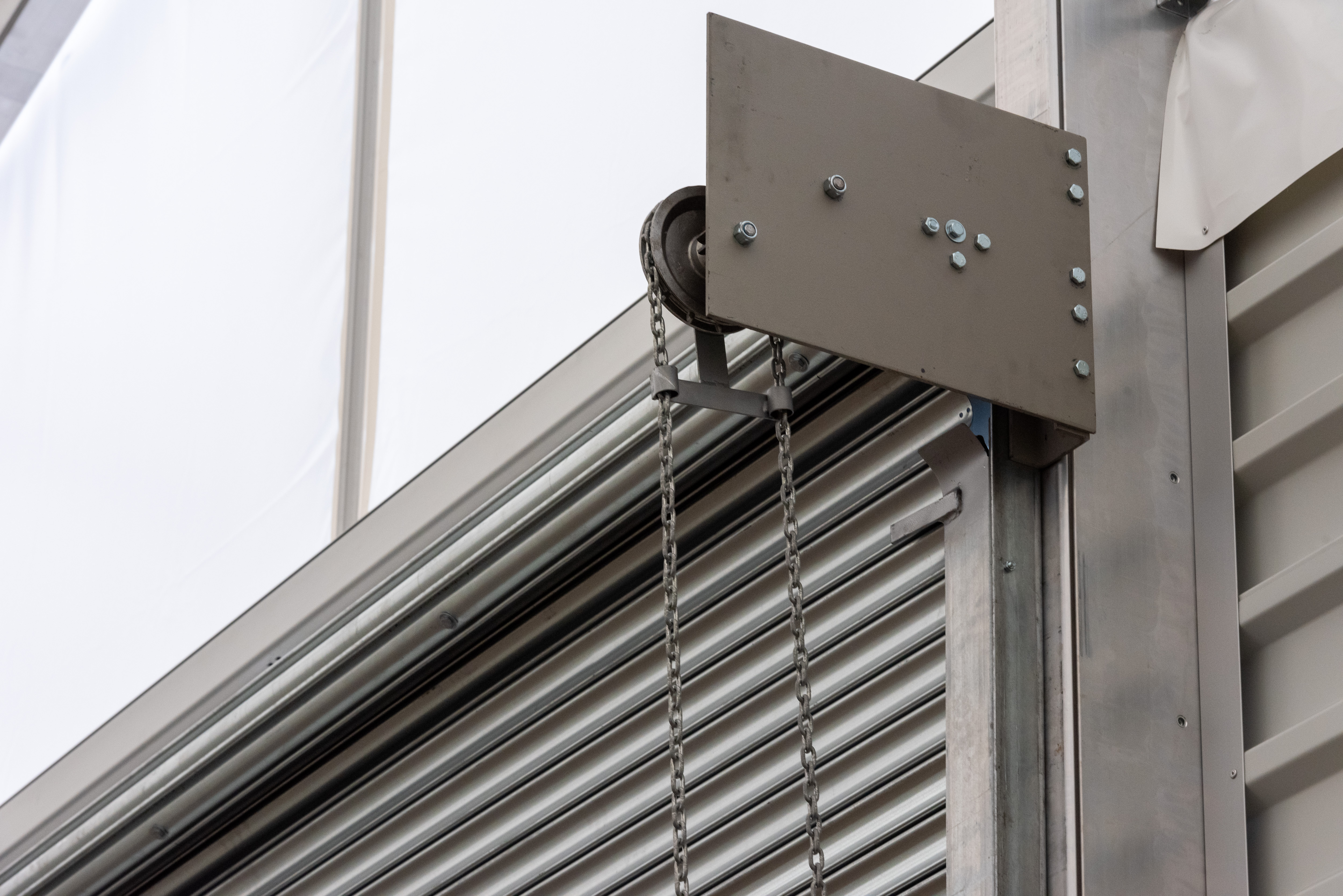

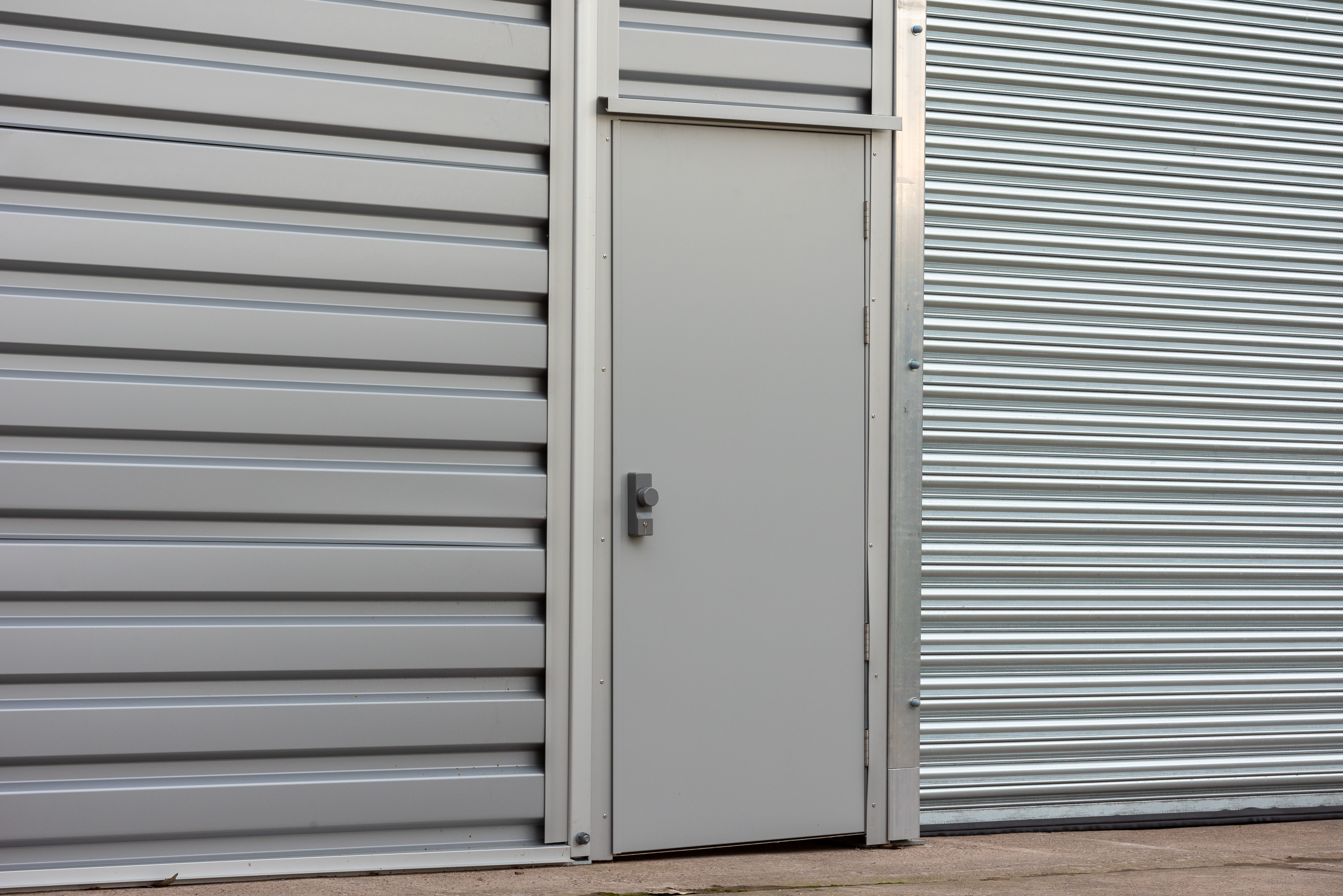

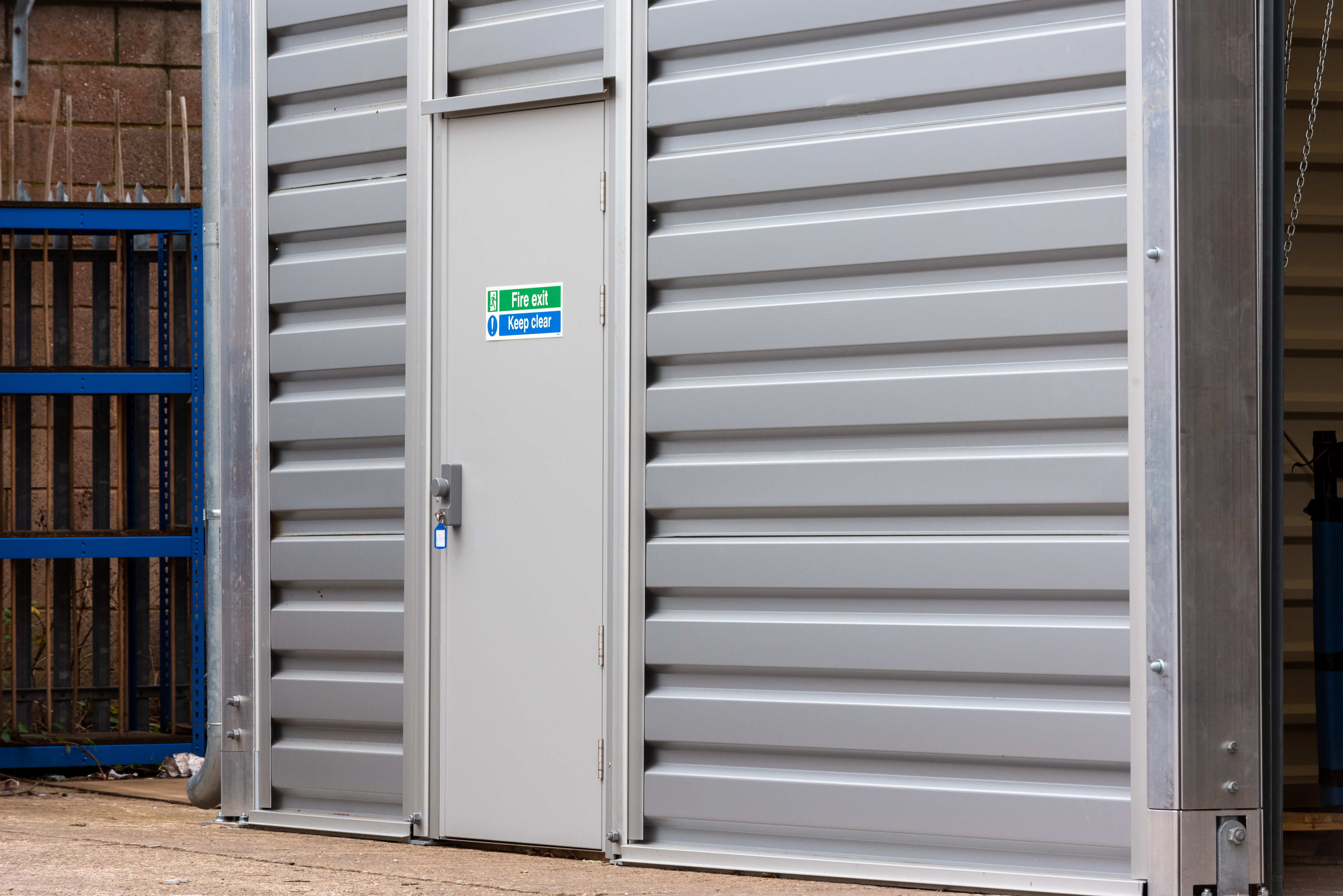

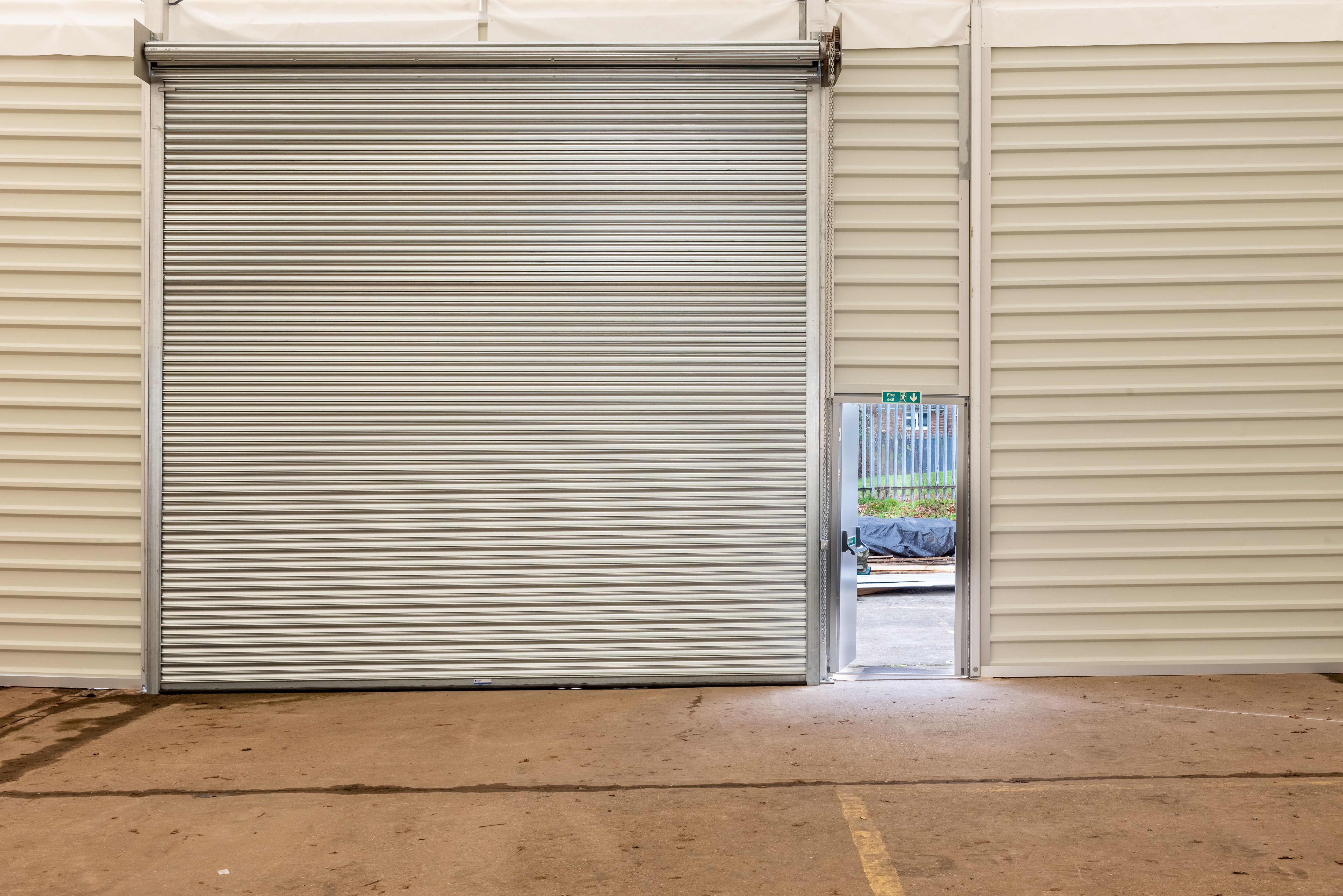

Access for workers is via 3 personnel doors that all have emergency releases. Loading and unloading access is through 2 insulated electric roller shutter doors that are 4.8 x 3.5m. Each has 3-way button controls and emergency hand crank.
Roof panels are white, translucent, flame-retardant PVC (DIN 4102/B1, M2) and the building frame is anodized aluminium profiles with steel joints. The framework is anchored to the existing concrete yard by anchor plates and dowels and the floor is finished with steel edging and Kompri tape to provide weatherproof sealing.

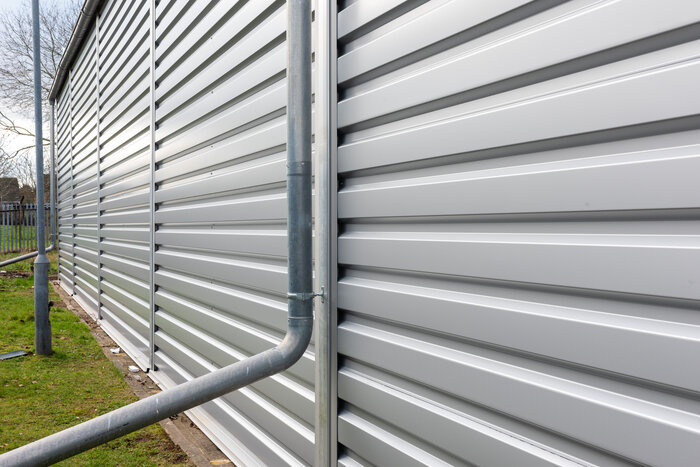

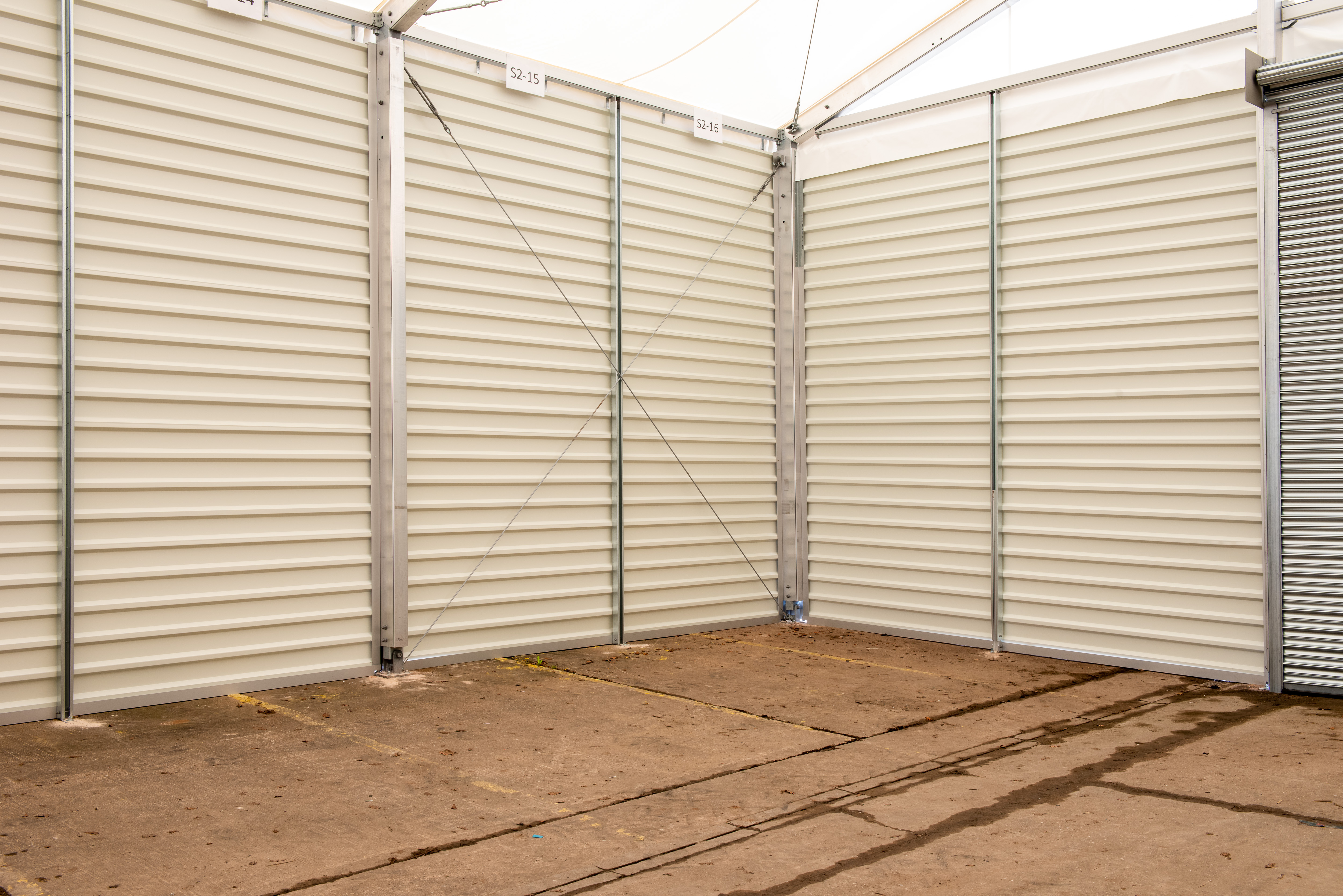

For extra support and building rigidity, steel wires and support beams run between the eaves for maximum load-bearing capacity. The building is designed for wind loads up to 0.5kN/m² and snow loads of 88kg/m². Outside, rain is collected from the roof by galvanized rain gutters with downpipes on both long sides of the building.
Our robust, aluminium-framed industrial buildings are easily adapted to a wide range of applications where security and protection from the weather are important. They can be delivered to site by truck and then assembled on site in just a few days.
Contact us now to find out more about our industrial storage buildings.
